Caddy

Caddy can manage https certificate automatically.

compose.yml

services:
  caddy:
    image: caddy:latest
    container_name: caddy
    restart: unless-stopped

    networks:
      - web
    ports:
      - "80:80"
      - "443:443"

    volumes:
      - ./Caddyfile:/etc/caddy/Caddyfile
      - ./data:/data
      - ./config:/config

networks:
  web:
    external: true

Then run in docker

cd ~/services/caddy
docker compose up -d

Write Caddyfile to map your site.

For any change in Caddyfile during its run, reload it using

cd ~/services/caddy
docker compose exec caddy caddy validate --config /etc/caddy/Caddyfile && \
docker compose exec caddy caddy reload --config /etc/caddy/Caddyfile

xiaobenmao.win {
    encode zstd gzip
    root * /srv/www
    file_server
}

Need to ensure the root path in docker container, here /srv/www, mapped to a real directory using the compose.yml.

auth.xiaobenmao.win {
    reverse_proxy authentik-server-1:9000
}

bits.xiaobenmao.win {
    reverse_proxy bits-wordpress:80
}

wiki.xiaobenmao.win {
    reverse_proxy pkb:8080
}

www.xiaobenmao.win {
    redir https://xiaobenmao.win{uri}
}

{uri} will copy all path and parameters as-is to the redirected one.

url.to.website {
    encode zstd gzip

    # Authentik outpost
    handle /outpost.goauthentik.io/* {
        reverse_proxy authentik-server-1:9000
    }

    # sample: no need auth for index page
    handle index.html {
        reverse_proxy xxx:80
    }

    # rest pages need auth
    handle {
        forward_auth authentik-server-1:9000 {
            uri /outpost.goauthentik.io/auth/caddy
            copy_headers X-Authentik-Username X-Authentik-Groups X-Authentik-Email X-Authentik-Name
        }

        reverse_proxy xxx:80
    }
}

Take note the caddy in uri /outpost.goauthentik.io/auth/caddy specify the host program, alternatives like /outpost.goauthentik.io/auth/nginx for Nginx and /outpost.goauthentik.io/auth/traefik for Traefik. Do not change it.

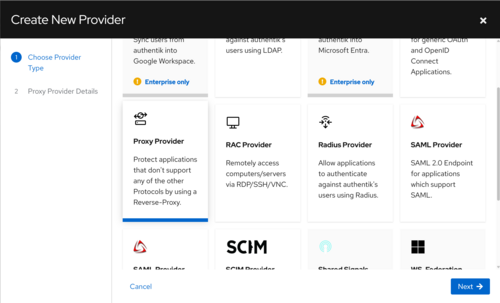

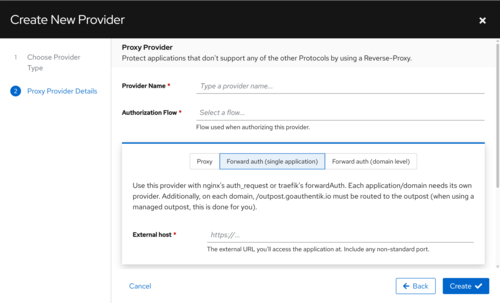

Then create a new forward auth provider in Authentik. Go to Applications - Providers - New Provider, select Proxy Provider, and fill in details. Select authorization flow as default-provider-authorization-implicit-consent (Authorize Application), and type forward auth (single application).

After that, create a new application with this provider. Bind users or access groups to this application.

Add the application into default outpost (authentik Embedded Outpost) via Applications - Outposts.

Testing should have 302 response for auth required page, while the remaining pages are normal.

curl -I https://url.to.website/index.html
curl -I https://url.to.website/test.html
